Flow rates between 5 L / min and 135 L / min
The MX series, the first series to benefit from this latest innovation (international patent), comes in 10 models with flow rates up to 852 liters / minute and pressures up to 38 meters from Liquid Column.
Maximum capacity: Up to 135 L / min
Magnetic Pump – MD Series (-F)
Centrifugal pumps with magnetic drive

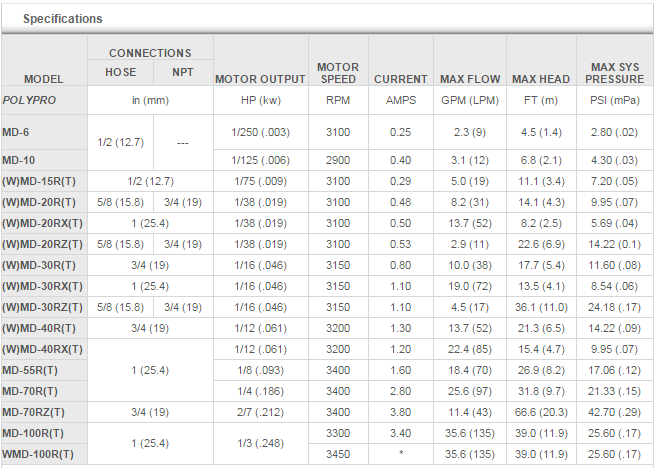

Very compact magnetic pumps for flow rates between 5 L / min and 135 L / min
The MD series magnetic pumps are small in size, completely watertight, high quality magnetic drive, high corrosion resistance and long life are the best-selling pumps in the world.
This range of magnetic pumps is used in applications as diverse as the others but especially for integrators such as medical equipment, graphic arts machines, aquarium, exchanger and economizer systems, fertilizer dosers, etc.
F-Magnetic Pump F- an unparalleled range of available models
The MD series includes around forty models. The selection of an economic model is possible thanks to a wide range of flows and heights. Fluted or threaded connections are available as standard on virtually all magnetic pumps.
Magnetic Pump MD F- Anti-Leakage System
Absolutely waterproof, the magnetic drive makes it impossible to leak through the pump and eliminates corrosion problems. Moreover, this advantage preserves the environment.
Magnetic Pump MD F- High corrosion resistance
The MD series magnetic pumps are constructed of polypropylene combined with the alumina ceramic or ETFE (PTFE derivative) associated with silicon carbide for the MD-F series; This allows an optimal corrosion resistance. They can therefore be used to transfer strong acids and various other chemicals.
Related products
-
Iwaki centrifugal Mag drive pumps
Motor 1/2 to 5 HP Max. 852 L / min
The MX series, the first series to benefit from this latest innovation (international patent), comes in 10 models with flow rates up to 852 liters / minute and pressures up to 38 meters from Liquid Column.
Maximum capacity: Up to 852 L / min
Specialist and supplier of water treatment equipmentMX Magnetic Pump (-F) – Radial Flow Structure
The magnetic pumps in this series benefit from a new radial flow structure developed by IWAKI Co (international patent), which in conjunction with the principle of “contactless” and axle holding at the front and The rear, improves the life of the pump.
These technical innovations make it possible to resist abnormal operations such as cavitation and closed valve operation at discharge. The principle of the radial circulation of the magnetic pump offers a better circulation of the liquid around the shaft and the bearing thanks to the orifices located on the turbine and on the magnetic capsule which reduce the heat resulting from the friction of these elements. As a result, thermal deformation or melting is avoided.
MX magnetic pump (-F) – Body division (or volute) in 2 parts
This other innovation, developed by IWAKI Co (international patent), is based on the division of the body (or volute) into 2 parts (a front body and a rear body) forming a conical tangential chamber which guides the fluid towards the orifice of Refoulement. This improves performance by minimizing leakage inside the volute. Furthermore, all stressed parts of the magnetic pump (front and rear bodies, for example) are reinforced by ribs in order to improve their resistance to pressure and their mechanical strength.
SKU: n/a -
Iwaki centrifugal Mag drive pumps
Motor 1/2 to 5 HP Max. 500 L / min
Centrifugal pumps with magnetic drive – self-priming
pumps of the series SMX- (F) are centrifugal pumps with magnetic drive self-priming horizontal-type made of polypropylene or ETFE no metal parts in contact with the liquid. These pumps have a separation system to automatically evacuate air from the liquid and do not require priming pots or foot valves. They have a fast priming system and high performance. These pumps offer superior dry resistance to standard self-priming pumps.Maximum capacity: Up to 500 L / min
Magnetic Pump SMX-F – Self-priming Pump
This magnetic drive pump, made without any metal parts in contact with the liquid, is self priming. It is sufficient to initially fill the reserve of liquid integrated in the pump body to ensure priming.
Magnetic Pump SMX-F – Simple constructionThe main parts of this magnetic pump are common to the MX series (-F). The small quantity of parts makes it easier to maintain and manage spare parts.
Magnetic Pump SMX-F – Chemical ResistanceThe parts of the wetted part are made of polypropylene filled with glass fibers, ETFE filled with carbon fibers, ceramic, carbon and other materials also resistant to corrosion. The SMX series of magnetic pumps can be used for a wide range of chemicals.
SKU: n/a -
Iwaki centrifugal Mag drive pumps
Motor 2 to 25 HP Max. 1325 L / min
MDM pumps are magnetic centrifugal pumps developed for a wide range of applications. The turbine in the volute (front body) is rotated by a magnetic force to transfer the liquid from the suction to the discharge of the pump. MDM pumps have excellent corrosion resistance, a long service life, high
safety and are used for pumping chemicals in different applications. Many chemicals can be transferred by these pumps.Maximum Capacity: Up to 1325 L / min
Specialist and supplier of water treatment equipmentInnovative, the Magnetic Pump series MDM brings notable progress in terms of comfort, safety of use and respect for the environment. It contributes to substantial savings due to its robustness and reliability by minimizing downtime and requiring little maintenance.
MDM Magnetic Pump – An Exclusive Mechanism for Preventing Dry Running
This magnetic pump is equipped with a device to avoid the effects of dry operation. The exceptional power of the magnets used (in rare earths) avoids contact of the magnetic capsule with the backstop and eliminates the risk of friction and heating due to melting of synthetic materials. This device achieves better resistance against dry running compared to traditional magnetic pumps.
Note: Only CF type magnetic pumps (with high density carbon bearings) can withstand dry operation. The latter is to be avoided in the case of parts of type KK (silicon carbide).Magnetic pump MDM – Components of extreme reliability
The front body ETFE is reinforced with carbon fibers for improved both strength and corrosion while the outer peripheral surfaces are reinforced with ductile iron to a more Long life.For the PFA MDM series, the ductile iron front body consists of a single piece coated with virgin fluorinated resin.
A new concept was adopted for the construction of the turbine. It is a “peg-fit” system that optimizes the axial maintenance of the turbine. Closed turbines are designed to ensure high efficiency. In addition, the rear body made of carbon-filled fluorine-containing resin is resistant to a pressure of 16 bar. It eliminates eddy currents and the production of sparks. Moreover, when dismantling for maintenance, any leakage of product proves impossible, the front and rear bodies being held in place by a flange. This advantage also contributes to respect for the environment.Magnetic Drive Pump MDM – release rear System (Pull-Back)
A special removal system is intended to facilitate maintenance of the magnetic pump. The interior of the unit can be easily inspected and parts can be replaced without disassembling the piping. This device is designed to prevent any leakage of liquid during the extraction of the motor assembly, spacer and magnetic drive
SKU: n/a -
Iwaki centrifugal Mag drive pumps
Motor 1/2 to 5 HP Max. 600 L / min
The pumps of the MXM series complete the range of process pumps and thus offer an additional choice in the range of centrifugal pumps with magnetic drive. The new MXM series offers the technical characteristics needed for a chemical pump, such as corrosion resistance, durability and safety.
Maximum capacity: Up to 605 L / min
The MXM series pumps complete the range of process magnetic pumps and enable IWAKI to offer an additional choice in its range of centrifugal pumps with magnetic drive.
MXM Magnetic Pump – Improved resistance to harsh operating conditionsThe “no contact” system and the “radial flow” construction improves dry running resistance and operation at low suction conditions.
Magnetic Drive Pump MXM – non-contact system
as conventional centrifugal pumps magnetic drive, the MXM series is scheduled to avoid contact with the bearing backstop during operations or dry air to the suction inlet. Thanks to this system, the risks of friction and heating with the melting of plastic materials are eliminated.Magnetic pump MXM – Construction “radial flow” (International Patent)
The principle of the radial movement of the magnetic pump allows circulation of the liquid between the shaft and the bearing through holes in the turbine and the magnetic capsule. This prevents heating due to friction between the shaft and bearing. As a result, thermal deformation is avoided.Magnetic pump MXM – exceptional corrosion resistance
The series of magnetic pumps MXM employs optimum corrosion materials such as ETFE reinforced carbon fiber (CFRETFE). High quality ceramic and carbon are used for the parts coming into contact with the liquid. The most appropriate turbine size and engine power can be selected according to the properties of the pumped liquid.Magnetic Drive Pump MXM – Robust Construction
The body forward CFRETFE a reinforcement iron. The assembly is intended to withstand high stresses for use in cement process.Magnetic Drive Pump MXM – Enhanced security
The rear body of the magnetic pump MXM features a unique design in its manufacture to resist deformation. A reinforcement of rear body makes it possible to increase the resistance to the hydraulic pressure and the mechanical forces on the support of the axis. The safety is thus reinforced by preventing the deformation of the rear body and the leakage of liquid.SKU: n/a -
Iwaki centrifugal Mag drive pumps
Motor 15 to 100 HP Max. 4996 L / min
Magnetic pump MDW Series
Centrifugal pumps with magnetic drive
magnetic pump MDW – Long life and increased reliabilityMaximum capacity: Up to 4996 L / min
All parts in fluorinated resins are lined with metal. Only the reinforcement of the rear bowl is made of PPS reinforced with fiberglass to resist the strongest stresses. The use of ductile iron to reinforce the front body and the spacer allowed the use of the MDW series magnetic pump in petrochemicalsMagnetic pump MDW – High corrosion resistance
These magnetic pumps are manufactured mainly fluorine resin and CIS. Standard body in ETFE, PFA for products specific to the electronics industry.Magnetic pump MDW – Liquids preserved
Pure fluorinated resins used avoid contamination of fluids especially in the middle of the semiconductor. The use of PFA makes it possible to use it with liquids whose temperature can exceed 120 ° C.Magnetic pump MDW – Dismantling and Maintenance Simplified
Dismantling the rear of the magnetic pump allows audits and interventions without dismantling the piping. The wear parts (bearing, sleeve, stop) can be replaced individually without special tools.SKU: n/a
